THREADED FLANGE
ASME/ANSI B16.5 THREADED PIPE FLANGES MANUFACTURER IN INDIA
MANUFACTURER/EXPORTER OF HIGH QUALITY THREADED FORGED FLANGES
CARBON, ALLOY, STAINLESS STEEL THREADED/SCREWED FLANGES
KEDAR STEEL & ALLOYS is a specialised manufacturer of high quality ASME/ANSI/DIN standard threaded flanges or screwed flanges in India. We offer immediate delivery programs for standard size of carbon steel threaded flanges and stainless steel threaded flanges.
Threaded flanges are widely used in low pressure piping systems, as no welding is involved while connecting the flanges to pipes or other equipment. However, the flange may be welded around the joint after assembly, but it is not considered a satisfactory method of increasing its applications. Threaded flanges are also known as screwed flanges and are similar to slip-on flanges, but the bore is threaded to enable assembling without welding. Threaded pipe flanges are usually used with pipes that have external threads.
We offer threaded pipe flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.
Our products are widely exported to countries and regions such as the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.
Threaded Flange, Threaded Forged Flanges, Screwed Flanges Production Range
Stainless Steel Threaded Flange |
Alloy Steel, Carbon Steel Threaded Flange |

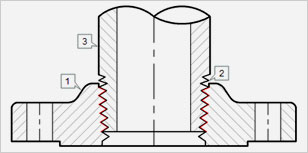

1-Threaded flange | 2-Thread | 3-Pipe or Fitting |
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Threaded Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Threaded Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Threaded Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Threaded Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At KEDAR STEEL & ALLOYS, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
Technical Information – Specifications, Dimensions Threaded/Screwed Flanges
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 150lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 300lb
- ANSI-ASME B16.5 Threaded Flange, Screwed Flange 400lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 600lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 900lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 1500lb
- ANSI/ASME B16.5 Threaded Flange/Screwed Flange 2500lb
